3D printer survival kit: a comprehensive set of 3D printer tools and tips.

Survival kit: tools for the 3D printers

This post started as early as September 2013, and it eventually ends here, may 2015! At least, you can be sure I heavily made my opinion and I have feedback on the tools I list here.

All included, a nicely packed Ultimaker 100% ready for travel.

I keep nearly all my tools in a dedicated box, that matches well the bottom of my printer. You will read in this post about each of the tools, slightly sorted in different categories and even though some tools are used for multiple tasks.

I attached a note after each of the items, where 5/5 is a must in my opinion, and 0/5 a luxury or a useless tools. Of course there are no 0/5 in my box as I want only a (comfortable) survival kit in the end. Read more...

Hot end

Telfon tape (3/5) is mostly interesting when assembling the hot end, in order to seal it against PLA leaks. But take care, as teflon is no good above 250°C. When assembled tightly and with quality stuff, no seal really is needed. The initial brown liquid will eventually seal it completely. I still keep a small roll of Teflon (bought for plumbing affairs), according to the hot ends I swap and filament I print.

Before printing and calibration

A basic lighter (5/5) is a must. I use it very often to "round" the head of the filament before I run it through the hot end. This is the easiest way to make it thin enough, but also to prevent inside damage to the bowden tube when it has sharp "snapped" edges (PLA may strip thin bands of PTFE, that will block your nozzle badly). A blowtorch (2/5) is so powerful that it melts the filament instantly, and then burns you when you flatten/burr it with bare hands. A lighter gives enough time to get the proper viscosity. Sure, the best tool here is a hot air rework/soldering station as you can set the exact temperature target, but it is totally bulky.

Nozzle cleanup with pieces of ABS (whosawhatsis)

Note that a lighter also helps shape hooks on the fly, e.g. to prevent your bowden tube from rubbing against the printer, to release strain on cables and so. PLA snaps a bit too easily in this regard, favor ABS.
A small flask of alcohol (3/5) to clean the bed -- no need to try beer (0/5). Actually, I often prefer almost undiluted dish washing soap (4/5). Rinse and repeat until you get a thicker foam on the bed, which means no trace of grease subsists. I do it rarely, as liquid glue is so efficient, unless I want to wash it off to revert to a pristine (sanded) glass bed for the neatest PLA prints.

Some people use a lot of blue painter tape (3/5) to improve bed adhesion, but I don't like it as it needs to be changed often, and it leaves tiny bits of fibers in the bottom of the prints.

I would go in bed with my liquid glue :) Cyanoacrylate is only for extreme fixes on the fly. Alcohol mat not be better than thick soap though.

Solvent-free liquid glue (5/5) is the killer in my opinion. I really was using this exclusively and consistently for almost two years now. I often add a bit of water to dilute the liquid glue further, even when printing annoying Nylon.

Comparatively, I do not recommend glue sticks (3/5), as they leave annoying blobs of glue that need to be watered/flattened afterwards.

I do not like sprayed glue (2/5), as it is not economical, nor ecological, and the mechanical parts will eventually collect some glue also (very bad!). Still OK when you can detach your bed (but still not really economical imho).

During printing

Powerful light source and powerful magnifier are a must.

A magnifier glass (5/5), preferably with a high power is a must to check your prints. Keep it small, or print your own handle, as you will not always have the space around the head to check the the deposited layers.

Together with a powerful light torch (4/5), a magnifier is an invaluable tool to learn and fine tune your printer. I use a high end x12 microscopic lens for digital camera, and a home made handle out of flexible PLA. This way I can stick the magnifier and get the proper angle to check the first layers, while illuminating the print from the other side (for the maximum light reflection).

Removal of printed parts and post-processing

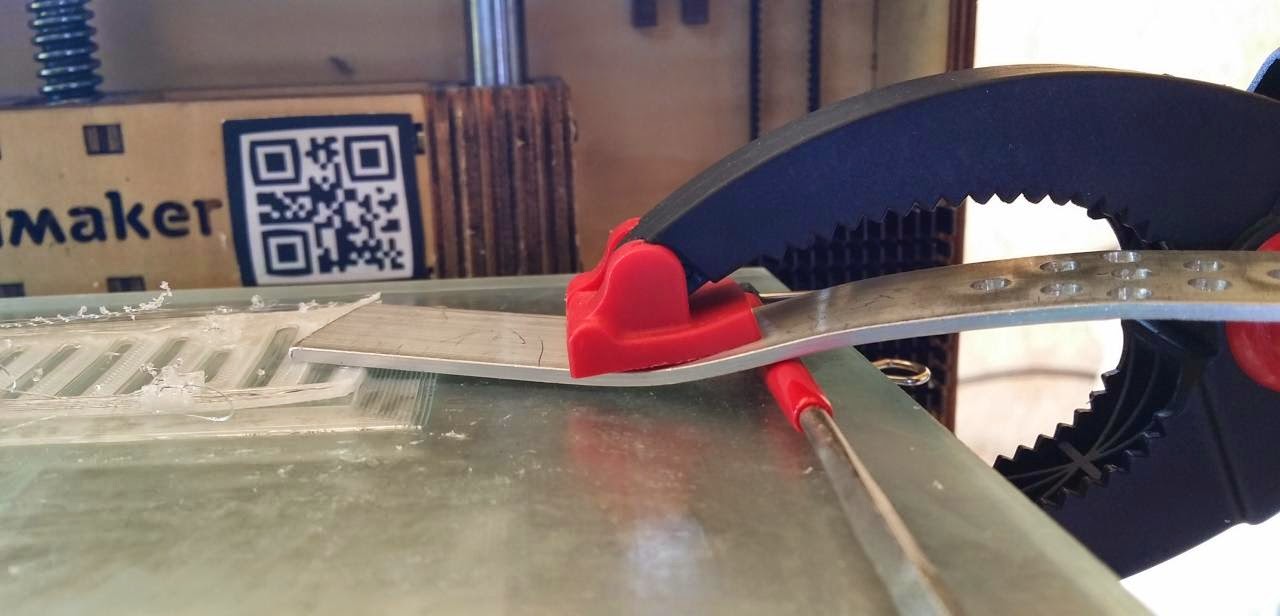

Deluxe cheese knife as a removal tool (overkill), and a blade holder as a scraper (see text). Much better and safer than any naked cutter blade.

Large flat knife (2/5) to use as a lever, or, better, a wide scalpel holder (4/5) to help removing the sticked prints off the bed. But better dose the glue appropriately (no need for PLA!). The wide blade is also very useful to remove dried or dirty glue off the bed.

Use of sharp cutting tools is compulsory at one moment or another. The best are definitely scalpels (5/5) in my opinion, with one curved blade and another with a thin and straight one. They cost nothing on ebay, and there are sets of 10 blades of many shapes.
Scalpels are also useful to remove specks of plastics that remains on the bed, without removing too much glue.

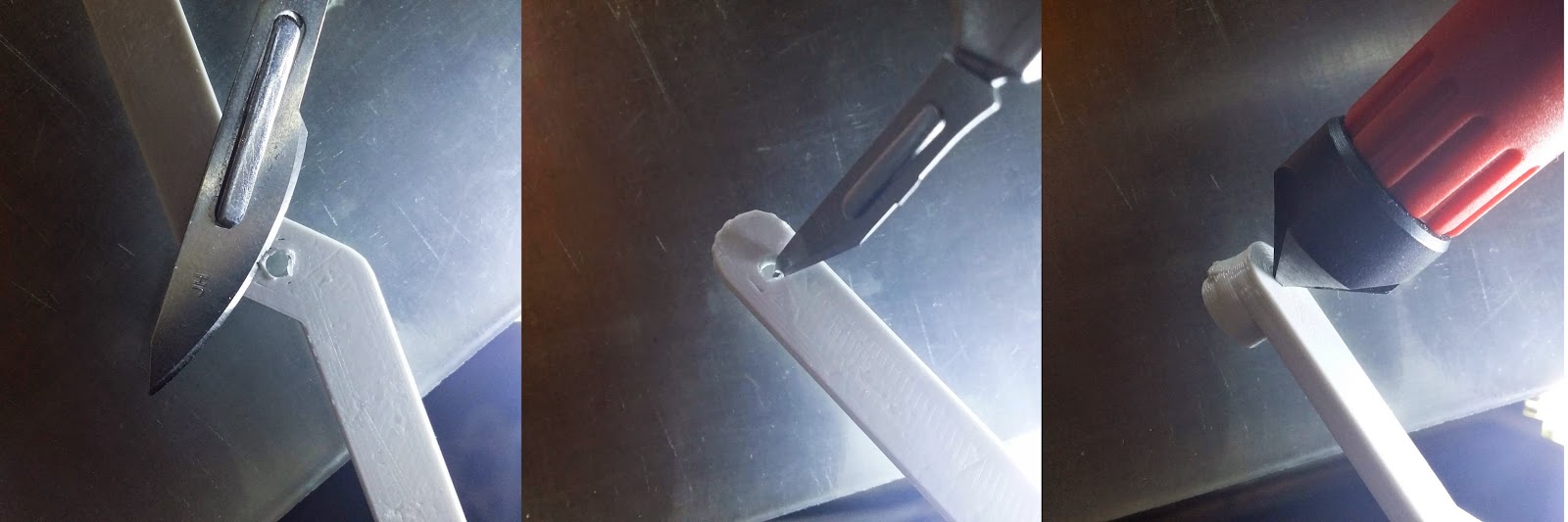

Three tools for three different deburring jobs. Using the proper tool is a joy in itself. I do not like X-Acto knives because they are bulkier (and more expensive). Most "snap-off blade" utility knives are both dangerous and inefficient in my opinion.

Three ways to chamfer, but the right one is useless.

A manual drill (4/5), which handle you can print yourself.  Or, a more expensive reamer (1/5), that will suit many more sizes. Better get one long and thin one to have a very sharp angle and make almost non-conic holes. There are also bigger tools to chamfer holes (2/5), like the big one on the right. They are are useful, but you may want to check for 45° chamfer wood end mill, as they will use less space in the toolbox.

In any case, I think that manual tools let you do a much cleaner job compared to power tools when dealing with thermoplastics.


Of course, you will probably want also to have some taps (3/5) and corresponding drill bits. Now, most of the time it may be done with the help of a regular long screw and fast forward-reverse movements.


A set of good set of small files (3/5) are really useful. Some can be found very cheap on ebay, and still give good results as the ones below. They are very useful for printed joins when you need a tight tolerance.

Very useful tiny files. A round one and a flat ones are a must to post-process tight joins.

Assembling, mechanical tools and 3D printer maintenance

Small and useful multi-tool wrench. It cuts Nylon safely. Not comfortable in my hand though.

A tiny pair of pliers (3/5) is a must have, and it helps also to snap or cut filaments more easily than anything else (think about Nylon: you cannot break it, and using a scalpel is out of question imho).


A set of hex keys (M8 is used in many printers, mostly because of the filament driver bolt). Actually a tiny adujstable wrench (2/5) would be very useful to replace a bunch of 8, 10, 12 flat wrenches, but I did not get anyone good enough so far (crappy sloppy ones from ebay).

M3 everyday tools. Well, the nut holder on top is bulky even though I shortened it, I often use my nut calumet instead.

A high quality set of hex screwdriver (5/5). Actually, I better recommend a multitool that can hide long bits within the handle, so it takes less place in the box and has more than one size.


Pulley allen hex key (5/5), that are rarely used but that are compulsory to secure your pulleys on the axis.

Conclusion

Not useful, but you always need to show what can be done (rod end, nylon hub) It is tiny enough to be kept with the tools, so you always have it handy.

And always... I keep a carefully selected set of tiny but high quality printed samples (4/5) to brag about. In my case, my printer is probably enough as many parts were already re-designed.






The tool/dirt box (5/5) itself: it holds all the tools, and in my case it fits nicely the bottom of my Ultimaker, so it makes it very easy to drag around in only one piece (given that I also moved my power supply beneath the frame).








Also, I eventually bought some tools twice. Now I have one set specifically for my 3D printer work. I realized more than once that I had left THE required tool/fix at home just when I needed it badly on a trip with my printer to a friend or to a client. The worst was when I did not have the spring for the level of my filament feeder (I had to revert to electric ties... and it worked! At least I had electric ties).
